Illumina Elite
>>
Kujo
>>

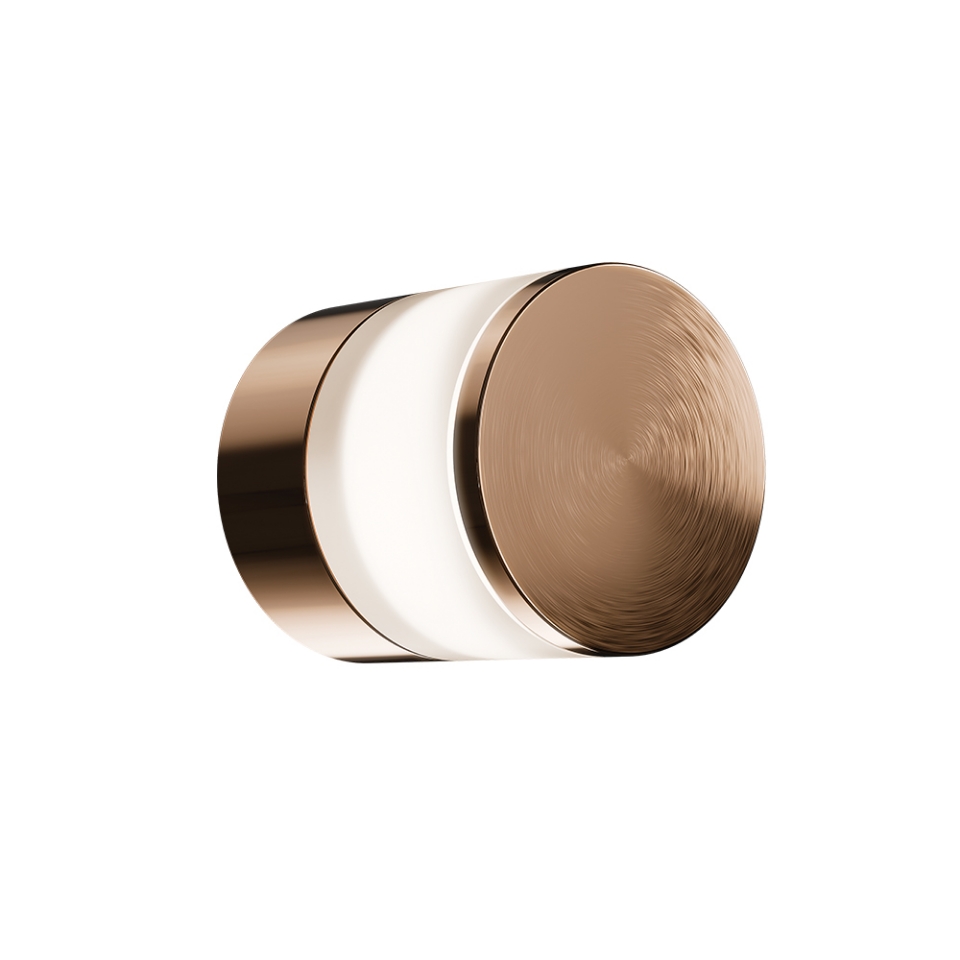

Wall Light for Outdoor Application
Tech Image
Wall Light for Outdoor Application
Range
:
Kujo
Code
:
OWA-GRY-LWWLKJB008XW
Description
:
LED KUJO WALL LIGHT 8W WW
DOWNLOADS:
Product Image
Technical Image
Disclaimer:
Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
The prices are subject to change without notice and those ruling at the time of supply will be charged.
Colours & sizes of product images shown in the Website may vary in reality
read more...
Technical Specifications
Operating Temperature -10℃ to 50℃
Operating Voltage 100-270 V
Rated Input Voltage & Frequency 220-240 V/AC & 50 Hz
Rated Input Wattage 8 W ± 10%
Rated Input Current 0.04 A
Power Factor ≥0.9
THD <10%
Rated Luminous Flux 560 Lm
Rated Luminare Efficacy 70 Lm/W
Correlated Color Temperature (CCT) 3000K (Tolerance as per ANSI)
Color Rendering Index (CRI) >80 Ra
Beam Angle 120°
Driver Efficiency >85%
LED Life Span >50,000 Hours (Ta=25℃ @L70)
Housing Die Cast Aluminium Housing, Powder Coated
Diffuser Milky PC Diffuser
Mounting Surface
Protections
Over Voltage Protection Withstand up to 440 V/AC for 4 Hours
Surge Protection 4 KV
Protection Class Class II
Ingress Protection (IP Rating) IP54
Short Circuit Protection Provided
Open Circuit Protection Provided
Reverse Polarity Protection Provided
